MTR2K UART Adapter

The MTR2K UART Adapter replaces the NanoPi NEO that comes with the STM32_DVM_MTR2k from Repeater-Builder. This allows for a more powerful PC to run the host software and perform transcoding operations.

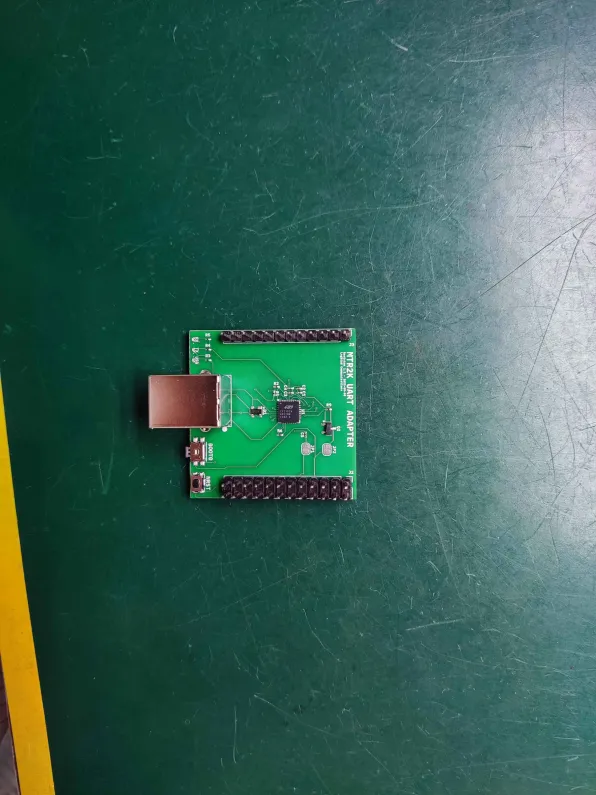

Product Photos

Ordering Information

Orders can be placed by writing to sales -at- legbirdcomms.net. Include shipping information and quantity requested.

Errata

HW Revision 1.1

• Connecting the BOOT0 jumper (JP2) will force the modem to hang in bootloader mode. The BOOT0 button continues to work as expected
• The dimensions are slightly off from the headers on the modem card. The adapter will still fit, but will be tighter than we'd like.
• The BOOT0 button (SW2) should be swapped for a SPST switch to avoid needing someone to press the button in for the duration of a flashing operation
